Reticulated Piped Gas Systems

LPG Reticulated Systems

Reticulated LPG/Gas system is nothing but supplying the LPG through special LPG pipeline network. This system is most sought of in residential projects in all metro cities.

LPG cylinders are stored in a cylinders bank at the ground level and the regulators are installed in all the apartments. Special protected devices are installed in Gas bank. The system has multiple pressure regulation stages to supply LPG to user at low pressure and to make the system safer. This system is compatible to piped natural gas after the availability of natural gas in respective cities.

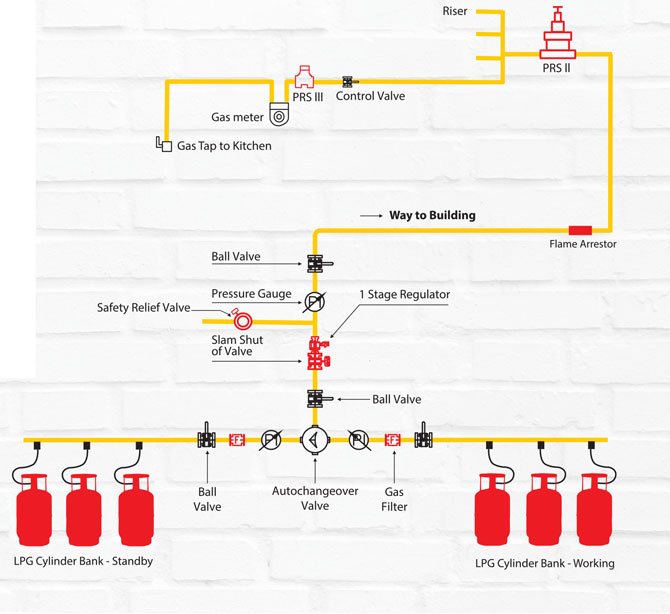

The main components of KRB Multigas Projects are as follows:

Gas Bank A
Isolation valve for Gas Bank A
Gas Bank B
Isolation valve for Gas Bank B
Pressure gauge No. 1 (range 0 to 10 kg/㎠)
Filter, Slam Shut Off Valve, First Stage Regulator and safety Relief Valve
Pressure gauge No. 2 (range 0 to 2 kg/㎠)
Isolation Valve for Each Building Risers
Flame Arrestor
Isolation Valve inside the Kitchen
Line regulator
Gas Meter
QT (Quarter Turn) isolation valve near appliances

What KRB Offers

Total System Design
Supply, installation and commissioning of the entire system.
inspection & maintenance of the facility
Assured continuous supply of LPG to the reticulated system through tie up with Oil Companies
After sales service and support
Hands on training to the residents
24-hour Emergency Service
Continues supply of gas at the turn of tap
Increased safety in kitchen as LPG enters the Flat / House at a very low pressure. Enhance safety, as cylinder is not stored inside the flat
No cylinder handling in houses/ flats hence saving valuable space in kitchen
Easy and effortless operation with increased convenience
Payment as per actual consumption of gas recorded in gas meters
Elements cylinder refill booking by individual consumers
No need to have an additional cylinder in the house thus enhances safety

Safety

The system is designed to supply LPG through multiple pressure regulation stages, in order to reach the user at a safe low pressure.
The system is equipped with UPSO/OPSO valve to minimize the chance of LPG leakage.
In the reticulated system, unlike the conventional system where a high-pressure cylinder is located in the kitchen posing a potential threat to human life and property, this risk is completely eliminated.

Safety Standard

System is designed to meet Indian safety standards applicable as below:

IS:6044 (Part 1) – applicable to multi-cylinder installation
IS:6044 (Part 2) – Commercial, Industrial and bulk storage installation
